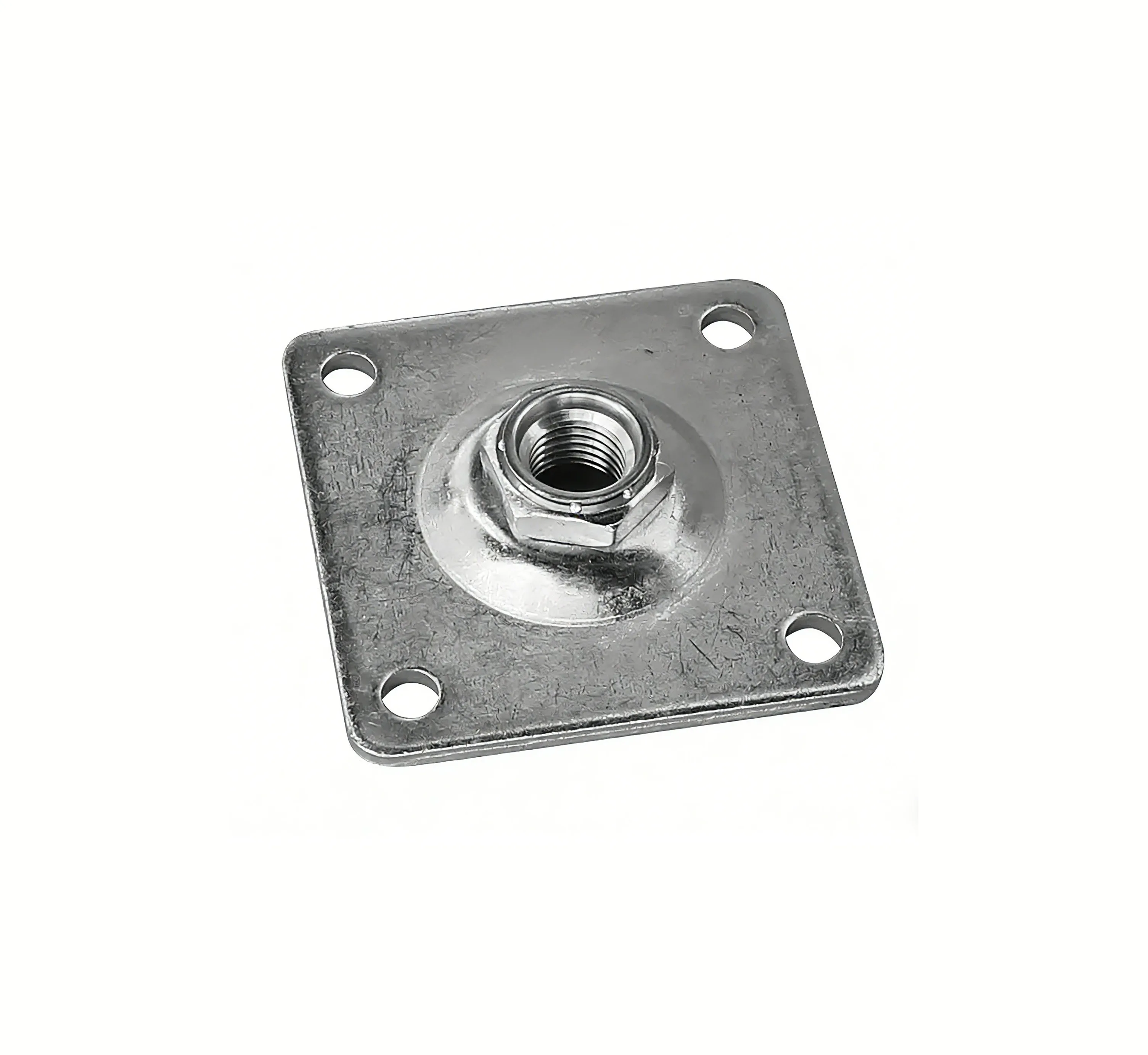

Screw-on plate for adjustable hinge (For DWH003)
Item No.
DWHA003
Select Options
规格
Unit Price
Price on Request
Minimum Order Quantity
500
Technical Specifications
| Material | Steel (galvanized) |
| Plate size | 80mm, 90mm, 100mm, 120mm |
| Base thickness | 4mm, 4mm, 5mm, 6mm |
| Thread diameter | M16, M18, M20, M24 |
| Mounting hole diameter | 10.5mm, 11mm, 11mm, 11mm |
| Total thickness | 18mm, 20mm, 22mm, 24mm |
Product Overview
The Plate to Screw for Adjustable Hinge is a high-quality galvanized steel accessory for adjustable hinges, featuring corrosion resistance and durability. It fits metal doors, industrial doors, garage doors, etc., with stable installation, strong load-bearing capacity and easy disassembly for maintenance.
